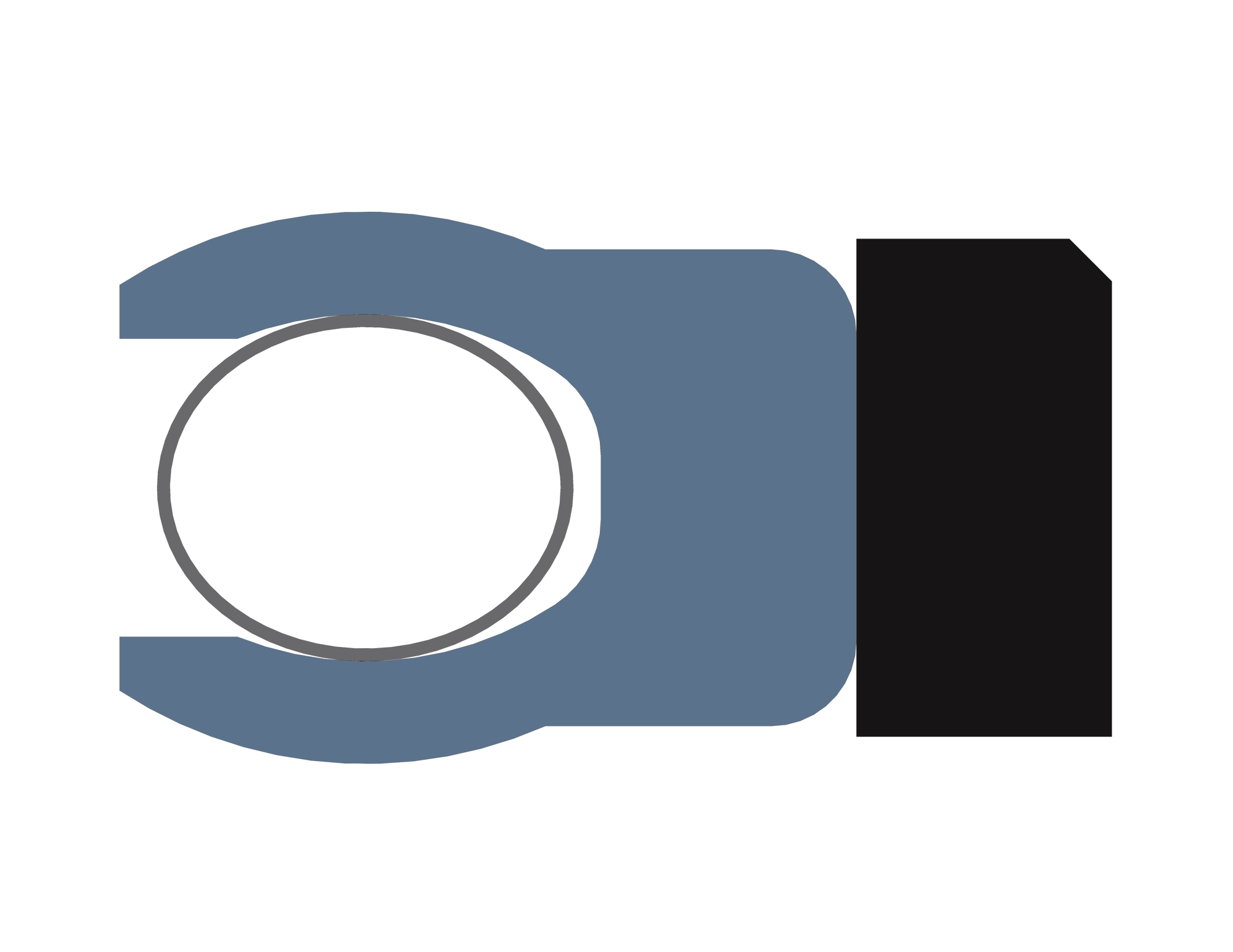

OptiSeal®

The OptiSeal® is a high-performance, low friction, full spectrum sealing solution.   The OptiSeal® is a spring energized seal that offers performance benefits ranging from enhanced media compatibility to superior performance in broad temperature ranges.  The basic design consists of a U-shaped jacket made from high performing Armorlene® thermoplastic materials specifically selected for the application.   The addition of a metal spring actuates the jacket material used in the system, which provides sealing at low system pressures, At higher system pressures, the seal becomes pressure energized by the fluid media – a sealing combination that ensures high sealing performance throughout the entire pressure range.

Features and Benefits

  • Ability to withstand corrosive environments.
  • Outstanding fluid compatibility
  • Superior dynamic and static sealing
  • Low static and dynamic friction
  • Operating temperature of cryogenic to +500°F (+260°C)
  • Very good thermal resistance
  • Unlimited Shelf Life
  • Capable of sealing at high speeds up to 49 ft/sec (15 m/s)
  • Capable of withstanding high pressures above 29,000 psi/ 200 MPa when using Back-up Rings
  • Can be installed in grooves according to AS4716.
    • Stepped or split glands are preferred.
  • Standard products are available for SAE-AS4716 gland sizes.
  • Custom manufactured intermediate sizes, inch sizes or special geometries.
OptiSeal
Dash Size ØC Min ØC Max ØA Min ØA Max ØF Min ØF Max ØB Min ØB Max ØH Min ØH Max ØE Min ØE Max R Radius Min R Radius Max Share
004 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
005 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
006 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
007 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
008 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
009 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
010 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
011 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
012 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
013 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
014 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
015 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
016 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
017 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
018 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
019 0.808 0.810 0.812 0.813 0.920 0.922 0.094 0.099 - - - - 0.005 0.015 Link Part #
020 0.871 0.873 0.875 0.876 0.983 0.985 0.094 0.099 - - - - 0.005 0.015 Link Part #
021 0.933 0.935 0.937 0.938 1.045 1.047 0.094 0.099 - - - - 0.005 0.015 Link Part #
022 0.996 0.998 1.000 1.001 1.108 1.110 0.094 0.099 - - - - 0.005 0.015 Link Part #
023 1.058 1.060 1.062 1.063 1.170 1.172 0.094 0.099 - - - - 0.005 0.015 Link Part #
024 1.121 1.123 1.125 1.126 1.233 1.235 0.094 0.099 - - - - 0.005 0.015 Link Part #
025 1.183 1.185 1.187 1.188 1.295 1.297 0.094 0.099 - - - - 0.005 0.015 Link Part #
026 1.246 1.248 1.250 1.251 1.358 1.360 0.094 0.099 - - - - 0.005 0.015 Link Part #
027 1.308 1.310 1.312 1.313 1.420 1.422 0.094 0.099 - - - - 0.005 0.015 Link Part #
028 1.371 1.373 1.375 1.376 1.483 1.485 0.094 0.099 - - - - 0.005 0.015 Link Part #
104 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
105 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
106 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
107 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
108 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
109 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
110 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
111 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
112 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
113 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
114 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
115 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
116 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
117 0.808 0.810 0.812 0.813 0.985 0.987 0.141 0.151 - - - - 0.005 0.015 Link Part #
118 0.871 0.873 0.875 0.876 1.048 1.050 0.141 0.151 - - - - 0.005 0.015 Link Part #
119 0.933 0.935 0.937 0.938 1.110 1.112 0.141 0.151 - - - - 0.005 0.015 Link Part #
120 0.996 0.998 1.000 1.001 1.173 1.175 0.141 0.151 - - - - 0.005 0.015 Link Part #
121 1.058 1.060 1.062 1.063 1.235 1.237 0.141 0.151 - - - - 0.005 0.015 Link Part #
122 1.121 1.123 1.125 1.126 1.298 1.300 0.141 0.151 - - - - 0.005 0.015 Link Part #
123 1.183 1.185 1.187 1.188 1.360 1.362 0.141 0.151 - - - - 0.005 0.015 Link Part #
124 1.246 1.248 1.250 1.251 1.423 1.425 0.141 0.151 - - - - 0.005 0.015 Link Part #
125 1.308 1.310 1.312 1.313 1.485 1.487 0.141 0.151 - - - - 0.005 0.015 Link Part #
126 1.371 1.373 1.375 1.376 1.548 1.550 0.141 0.151 - - - - 0.005 0.015 Link Part #
127 1.433 1.435 1.437 1.439 1.610 1.612 0.141 0.151 - - - - 0.005 0.015 Link Part #
128 1.496 1.498 1.500 1.502 1.673 1.675 0.141 0.151 - - - - 0.005 0.015 Link Part #
129 1.558 1.560 1.562 1.564 1.735 1.737 0.141 0.151 - - - - 0.005 0.015 Link Part #
130 1.621 1.623 1.625 1.627 1.798 1.800 0.141 0.151 - - - - 0.005 0.015 Link Part #
131 1.683 1.685 1.687 1.689 1.860 1.862 0.141 0.151 - - - - 0.005 0.015 Link Part #
132 1.746 1.748 1.750 1.752 1.923 1.925 0.141 0.151 - - - - 0.005 0.015 Link Part #
133 1.808 1.810 1.813 1.815 1.984 1.986 0.141 0.151 - - - - 0.005 0.015 Link Part #
134 1.871 1.873 1.876 1.878 2.047 2.049 0.141 0.151 - - - - 0.005 0.015 Link Part #
135 1.934 1.936 1.939 1.941 2.110 2.112 0.141 0.151 - - - - 0.005 0.015 Link Part #
136 1.996 1.998 2.001 2.003 2.172 2.174 0.141 0.151 - - - - 0.005 0.015 Link Part #
137 2.059 2.061 2.064 2.066 2.235 2.237 0.141 0.151 - - - - 0.005 0.015 Link Part #
138 2.121 2.123 2.126 2.128 2.297 2.299 0.141 0.151 - - - - 0.005 0.015 Link Part #
139 2.184 2.186 2.179 2.181 2.360 2.362 0.141 0.151 - - - - 0.005 0.015 Link Part #
140 2.246 2.248 2.251 2.253 2.422 2.424 0.141 0.151 - - - - 0.005 0.015 Link Part #
141 2.309 2.311 2.314 2.316 2.485 2.487 0.141 0.151 - - - - 0.005 0.015 Link Part #
142 2.371 2.373 2.376 2.378 2.547 2.549 0.141 0.151 - - - - 0.005 0.015 Link Part #
143 2.434 2.436 2.439 2.441 2.610 2.612 0.141 0.151 - - - - 0.005 0.015 Link Part #
144 2.496 2.498 2.501 2.503 2.672 2.674 0.141 0.151 - - - - 0.005 0.015 Link Part #
145 2.559 2.561 2.564 2.566 2.735 2.737 0.141 0.151 - - - - 0.005 0.015 Link Part #
146 2.621 2.623 2.626 2.628 2.797 2.799 0.141 0.151 - - - - 0.005 0.015 Link Part #
147 2.684 2.686 2.689 2.691 2.860 2.862 0.141 0.151 - - - - 0.005 0.015 Link Part #
148 2.746 2.748 2.751 2.753 2.922 2.924 0.141 0.151 - - - - 0.005 0.015 Link Part #
149 2.809 2.811 2.814 2.816 2.985 2.987 0.141 0.151 - - - - 0.005 0.015 Link Part #
210 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
211 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
212 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
213 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
214 0.996 0.998 1.000 1.001 1.240 1.242 0.188 0.198 - - - - 0.010 0.025 Link Part #
215 1.058 1.060 1.062 1.063 1.302 1.304 0.188 0.198 - - - - 0.010 0.025 Link Part #
216 1.121 1.123 1.125 1.126 1.365 1.367 0.188 0.198 - - - - 0.010 0.025 Link Part #
217 1.183 1.185 1.187 1.188 1.427 1.429 0.188 0.198 - - - - 0.010 0.025 Link Part #
218 1.246 1.248 1.250 1.251 1.490 1.492 0.188 0.198 - - - - 0.010 0.025 Link Part #
219 1.308 1.310 1.312 1.313 1.552 1.554 0.188 0.198 - - - - 0.010 0.025 Link Part #
220 1.371 1.373 1.375 1.376 1.615 1.617 0.188 0.198 - - - - 0.010 0.025 Link Part #
221 1.433 1.435 1.437 1.438 1.677 1.679 0.188 0.198 - - - - 0.010 0.025 Link Part #
222 1.496 1.498 4.500 4.501 1.740 1.742 0.188 0.198 - - - - 0.010 0.025 Link Part #
223 1.621 1.623 1.625 1.627 1.865 1.867 0.188 0.198 - - - - 0.010 0.025 Link Part #
224 1.746 1.748 1.750 1.752 1.990 1.992 0.188 0.198 - - - - 0.010 0.025 Link Part #
225 1.871 1.873 1.876 1.878 2.115 2.117 0.188 0.198 - - - - 0.010 0.025 Link Part #
226 1.996 1.998 2.001 2.003 2.240 2.242 0.188 0.198 - - - - 0.010 0.025 Link Part #
227 2.121 2.123 2.126 2.128 2.365 2.367 0.188 0.198 - - - - 0.010 0.025 Link Part #
228 2.246 2.248 2.251 2.253 2.490 2.492 0.188 0.198 - - - - 0.010 0.025 Link Part #
229 2.371 2.373 2.376 2.378 2.615 2.617 0.188 0.198 - - - - 0.010 0.025 Link Part #
230 2.496 2.498 2.501 2.503 2.740 2.742 0.188 0.198 - - - - 0.010 0.025 Link Part #
231 2.621 2.623 2.626 2.628 2.865 2.867 0.188 0.198 - - - - 0.010 0.025 Link Part #
232 2.746 2.748 2.751 2.753 2.990 2.992 0.188 0.198 - - - - 0.010 0.025 Link Part #
233 2.871 2.873 2.876 2.878 3.115 3.117 0.188 0.198 - - - - 0.010 0.025 Link Part #
234 2.995 2.997 3.000 3.002 3.239 3.241 0.188 0.198 - - - - 0.010 0.025 Link Part #
235 3.120 3.122 3.125 3.127 3.364 3.366 0.188 0.198 - - - - 0.010 0.025 Link Part #
236 3.245 3.247 3.250 3.252 3.489 3.491 0.188 0.198 - - - - 0.010 0.025 Link Part #
237 3.370 3.372 3.375 3.377 3.614 3.616 0.188 0.198 - - - - 0.010 0.025 Link Part #
238 3.495 3.497 3.500 3.502 3.739 3.741 0.188 0.198 - - - - 0.010 0.025 Link Part #
239 3.620 3.622 3.625 3.627 3.864 3.866 0.188 0.198 - - - - 0.010 0.025 Link Part #
240 3.745 3.747 3.750 3.752 3.989 3.991 0.188 0.198 - - - - 0.010 0.025 Link Part #
241 3.870 3.872 3.875 3.877 4.114 4.116 0.188 0.198 - - - - 0.010 0.025 Link Part #
242 3.995 3.997 4.000 4.002 4.239 4.241 0.188 0.198 - - - - 0.010 0.025 Link Part #
243 4.120 4.122 4.125 4.127 4.364 4.366 0.188 0.198 - - - - 0.010 0.025 Link Part #
244 4.245 4.247 4.250 4.252 4.489 4.491 0.188 0.198 - - - - 0.010 0.025 Link Part #
245 4.370 4.372 4.375 4.377 4.614 4.616 0.188 0.198 - - - - 0.010 0.025 Link Part #
246 4.495 4.497 4.501 4.503 4.739 4.741 0.188 0.198 - - - - 0.010 0.025 Link Part #
247 4.620 4.622 4.626 4.628 4.864 4.866 0.188 0.198 - - - - 0.010 0.025 Link Part #
325 1.496 1.498 1.500 1.502 1.870 1.872 0.281 0.291 - - - - 0.020 0.035 Link Part #
326 1.621 1.623 1.625 1.627 1.995 1.997 0.281 0.291 - - - - 0.020 0.035 Link Part #
327 1.746 1.748 1.750 1.752 2.120 2.122 0.281 0.291 - - - - 0.020 0.035 Link Part #
328 1.871 1.873 1.876 1.878 2.245 2.247 0.281 0.291 - - - - 0.020 0.035 Link Part #
329 1.996 1.998 2.001 2.003 2.370 2.372 0.281 0.291 - - - - 0.020 0.035 Link Part #
330 2.121 2.123 2.126 2.128 2.495 2.497 0.281 0.291 - - - - 0.020 0.035 Link Part #
331 2.246 2.248 2.251 2.253 2.620 2.622 0.281 0.291 - - - - 0.020 0.035 Link Part #
332 2.371 2.373 2.376 2.378 2.745 2.747 0.281 0.291 - - - - 0.020 0.035 Link Part #
333 2.496 2.498 2.501 2.503 2.870 2.872 0.281 0.291 - - - - 0.020 0.035 Link Part #
334 2.621 2.623 2.626 2.628 2.995 2.997 0.281 0.291 - - - - 0.020 0.035 Link Part #
335 2.746 2.748 2.751 2.753 3.120 3.122 0.281 0.291 - - - - 0.020 0.035 Link Part #
336 2.871 2.873 2.876 2.878 3.245 3.247 0.281 0.291 - - - - 0.020 0.035 Link Part #
337 2.995 2.997 3.000 3.002 3.369 3.371 0.281 0.291 - - - - 0.020 0.035 Link Part #
338 3.120 3.122 3.125 3.127 3.494 3.496 0.281 0.291 - - - - 0.020 0.035 Link Part #
339 3.245 3.247 3.250 3.252 3.619 3.621 0.281 0.291 - - - - 0.020 0.035 Link Part #
340 3.370 3.372 3.375 3.377 3.744 3.746 0.281 0.291 - - - - 0.020 0.035 Link Part #
341 3.495 3.497 3.500 3.502 3.869 3.871 0.281 0.291 - - - - 0.020 0.035 Link Part #
342 3.620 3.622 3.625 3.627 3.994 3.996 0.281 0.291 - - - - 0.020 0.035 Link Part #
343 3.745 3.747 3.750 3.752 4.119 4.121 0.281 0.291 - - - - 0.020 0.035 Link Part #
344 3.870 3.872 3.875 3.877 4.244 4.246 0.281 0.291 - - - - 0.020 0.035 Link Part #
345 3.995 3.997 4.000 4.002 4.369 4.371 0.281 0.291 - - - - 0.020 0.035 Link Part #
346 4.120 4.122 4.125 4.127 4.494 4.496 0.281 0.291 - - - - 0.020 0.035 Link Part #
347 4.245 4.247 4.250 4.252 4.619 4.621 0.281 0.291 - - - - 0.020 0.035 Link Part #
348 4.370 4.372 4.375 4.377 4.744 4.746 0.281 0.291 - - - - 0.020 0.035 Link Part #
349 4.495 4.497 4.500 4.502 4.869 4.871 0.281 0.291 - - - - 0.020 0.035 Link Part #
425 4.494 4.497 4.501 4.503 4.974 4.977 0.375 0.385 - - - - 0.020 0.035 Link Part #
426 4.619 4.622 4.626 4.628 5.099 5.102 0.375 0.385 - - - - 0.020 0.035 Link Part #
427 4.744 4.747 4.751 4.753 5.224 5.227 0.375 0.385 - - - - 0.020 0.035 Link Part #
428 4.869 4.872 4.876 4.878 5.349 5.352 0.375 0.385 - - - - 0.020 0.035 Link Part #
429 4.994 4.997 5.001 5.003 5.474 5.477 0.375 0.385 - - - - 0.020 0.035 Link Part #
430 5.119 5.122 5.513 5.515 5.599 5.602 0.375 0.385 - - - - 0.020 0.035 Link Part #
431 5.244 5.247 5.251 5.253 5.724 5.727 0.375 0.385 - - - - 0.020 0.035 Link Part #
432 5.369 5.372 5.376 5.378 5.849 5.852 0.375 0.385 - - - - 0.020 0.035 Link Part #
433 5.494 5.497 5.501 5.503 5.974 5.977 0.375 0.385 - - - - 0.020 0.035 Link Part #
434 5.619 5.622 5.626 5.628 6.099 6.102 0.375 0.385 - - - - 0.020 0.035 Link Part #
435 5.744 5.747 5.751 5.753 6.224 6.227 0.375 0.385 - - - - 0.020 0.035 Link Part #
436 5.869 5.872 5.876 5.878 6.349 6.352 0.375 0.385 - - - - 0.020 0.035 Link Part #
437 5.994 5.997 6.001 6.003 6.474 6.477 0.375 0.385 - - - - 0.020 0.035 Link Part #
438 6.244 6.247 6.251 6.253 6.724 6.727 0.375 0.385 - - - - 0.020 0.035 Link Part #
439 6.494 6.497 6.501 6.503 6.974 6.977 0.375 0.385 - - - - 0.020 0.035 Link Part #
440 6.744 6.747 6.751 6.753 7.224 7.227 0.375 0.385 - - - - 0.020 0.035 Link Part #
441 6.994 6.997 7.001 7.003 7.474 7.477 0.375 0.385 - - - - 0.020 0.035 Link Part #
442 7.244 7.247 7.251 7.253 7.724 7.727 0.375 0.385 - - - - 0.020 0.035 Link Part #
443 7.494 7.497 7.501 7.503 7.974 7.977 0.375 0.385 - - - - 0.020 0.035 Link Part #
444 7.744 7.747 7.751 7.753 8.224 8.227 0.375 0.385 - - - - 0.020 0.035 Link Part #
445 7.994 7.997 8.001 8.003 8.474 8.477 0.375 0.385 - - - - 0.020 0.035 Link Part #
446 8.494 8.497 8.501 8.503 8.974 8.977 0.375 0.385 - - - - 0.020 0.035 Link Part #
447 8.994 8.997 9.001 9.003 9.474 9.478 0.375 0.385 - - - - 0.020 0.035 Link Part #
448 9.494 9.497 9.501 9.503 9.974 9.978 0.375 0.385 - - - - 0.020 0.035 Link Part #
449 9.994 9.997 10.001 10.003 10.474 10.478 0.375 0.385 - - - - 0.020 0.035 Link Part #
450 10.494 10.497 10.501 10.503 10.974 10.978 0.375 0.385 - - - - 0.020 0.035 Link Part #
451 10.994 10.997 11.001 11.003 11.474 11.478 0.375 0.385 - - - - 0.020 0.035 Link Part #
452 11.494 11.497 11.501 11.503 11.974 11.978 0.375 0.385 - - - - 0.020 0.035 Link Part #
453 11.994 11.997 12.001 12.003 12.474 12.478 0.375 0.385 - - - - 0.020 0.035 Link Part #
454 12.494 12.497 12.501 12.503 12.974 12.978 0.375 0.385 - - - - 0.020 0.035 Link Part #
455 12.994 12.997 13.001 13.003 13.474 13.478 0.375 0.385 - - - - 0.020 0.035 Link Part #
456 13.494 13.497 13.501 13.503 13.974 13.978 0.375 0.385 - - - - 0.020 0.035 Link Part #
457 13.994 13.997 14.001 14.003 14.474 14.478 0.375 0.385 - - - - 0.020 0.035 Link Part #
458 14.494 14.497 14.501 14.503 14.974 14.978 0.375 0.385 - - - - 0.020 0.035 Link Part #
459 14.994 14.997 15.001 15.003 15.474 15.478 0.375 0.385 - - - - 0.020 0.035 Link Part #
460 15.494 15.497 15.501 15.503 15.974 15.978 0.375 0.385 - - - - 0.020 0.035 Link Part #
004 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
005 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
006 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
007 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
008 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
009 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
010 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
011 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
012 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
013 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
014 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
015 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
016 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
017 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
018 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
019 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
020 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
021 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
022 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
023 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
024 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
025 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
026 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
027 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
028 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
104 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
105 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
106 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
107 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
108 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
109 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
110 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
111 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
112 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
113 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
114 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
115 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
116 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
117 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
118 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
119 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
120 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
121 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
122 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
123 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
124 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
125 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
126 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
127 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
128 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
129 1.558 1.560 1.562 1.564 1.735 1.737 0.141 0.151 - - - - 0.005 0.015 Link Part #
130 1.621 1.623 1.625 1.627 1.798 1.800 0.141 0.151 - - - - 0.005 0.015 Link Part #
131 1.683 1.685 1.687 1.689 1.860 1.862 0.141 0.151 - - - - 0.005 0.015 Link Part #
132 1.746 1.748 1.750 1.752 1.923 1.925 0.141 0.151 - - - - 0.005 0.015 Link Part #
133 1.808 1.810 1.813 1.815 1.984 1.986 0.141 0.151 - - - - 0.005 0.015 Link Part #
134 1.871 1.873 1.876 1.878 2.047 2.049 0.141 0.151 - - - - 0.005 0.015 Link Part #
135 1.934 1.936 1.939 1.941 2.110 2.112 0.141 0.151 - - - - 0.005 0.015 Link Part #
136 1.996 1.998 2.001 2.003 2.172 2.174 0.141 0.151 - - - - 0.005 0.015 Link Part #
137 2.059 2.061 2.064 2.066 2.235 2.237 0.141 0.151 - - - - 0.005 0.015 Link Part #
138 2.121 2.123 2.126 2.128 2.297 2.299 0.141 0.151 - - - - 0.005 0.015 Link Part #
139 2.184 2.186 2.179 2.181 2.360 2.362 0.141 0.151 - - - - 0.005 0.015 Link Part #
140 2.246 2.248 2.251 2.253 2.422 2.424 0.141 0.151 - - - - 0.005 0.015 Link Part #
141 2.309 2.311 2.314 2.316 2.485 2.487 0.141 0.151 - - - - 0.005 0.015 Link Part #
142 2.371 2.373 2.376 2.378 2.547 2.549 0.141 0.151 - - - - 0.005 0.015 Link Part #
143 2.434 2.436 2.439 2.441 2.610 2.612 0.141 0.151 - - - - 0.005 0.015 Link Part #
144 2.496 2.498 2.501 2.503 2.672 2.674 0.141 0.151 - - - - 0.005 0.015 Link Part #
145 2.559 2.561 2.564 2.566 2.735 2.737 0.141 0.151 - - - - 0.005 0.015 Link Part #
146 2.621 2.623 2.626 2.628 2.797 2.799 0.141 0.151 - - - - 0.005 0.015 Link Part #
147 2.684 2.686 2.689 2.691 2.860 2.862 0.141 0.151 - - - - 0.005 0.015 Link Part #
148 2.746 2.748 2.751 2.753 2.922 2.924 0.141 0.151 - - - - 0.005 0.015 Link Part #
149 2.809 2.811 2.814 2.816 2.985 2.987 0.141 0.151 - - - - 0.005 0.015 Link Part #
210 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
211 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
212 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
213 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
214 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
215 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
216 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
217 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
218 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
219 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
220 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
221 NA NA NA NA NA NA NA NA - - - - NA NA Link Part #
222 1.496 1.498 4.500 4.501 1.740 1.742 0.188 0.198 - - - - 0.010 0.025 Link Part #
223 1.621 1.623 1.625 1.627 1.865 1.867 0.188 0.198 - - - - 0.010 0.025 Link Part #
224 1.746 1.748 1.750 1.752 1.990 1.992 0.188 0.198 - - - - 0.010 0.025 Link Part #
225 1.871 1.873 1.876 1.878 2.115 2.117 0.188 0.198 - - - - 0.010 0.025 Link Part #
226 1.996 1.998 2.001 2.003 2.240 2.242 0.188 0.198 - - - - 0.010 0.025 Link Part #
227 2.121 2.123 2.126 2.128 2.365 2.367 0.188 0.198 - - - - 0.010 0.025 Link Part #
228 2.246 2.248 2.251 2.253 2.490 2.492 0.188 0.198 - - - - 0.010 0.025 Link Part #
229 2.371 2.373 2.376 2.378 2.615 2.617 0.188 0.198 - - - - 0.010 0.025 Link Part #
230 2.496 2.498 2.501 2.503 2.740 2.742 0.188 0.198 - - - - 0.010 0.025
